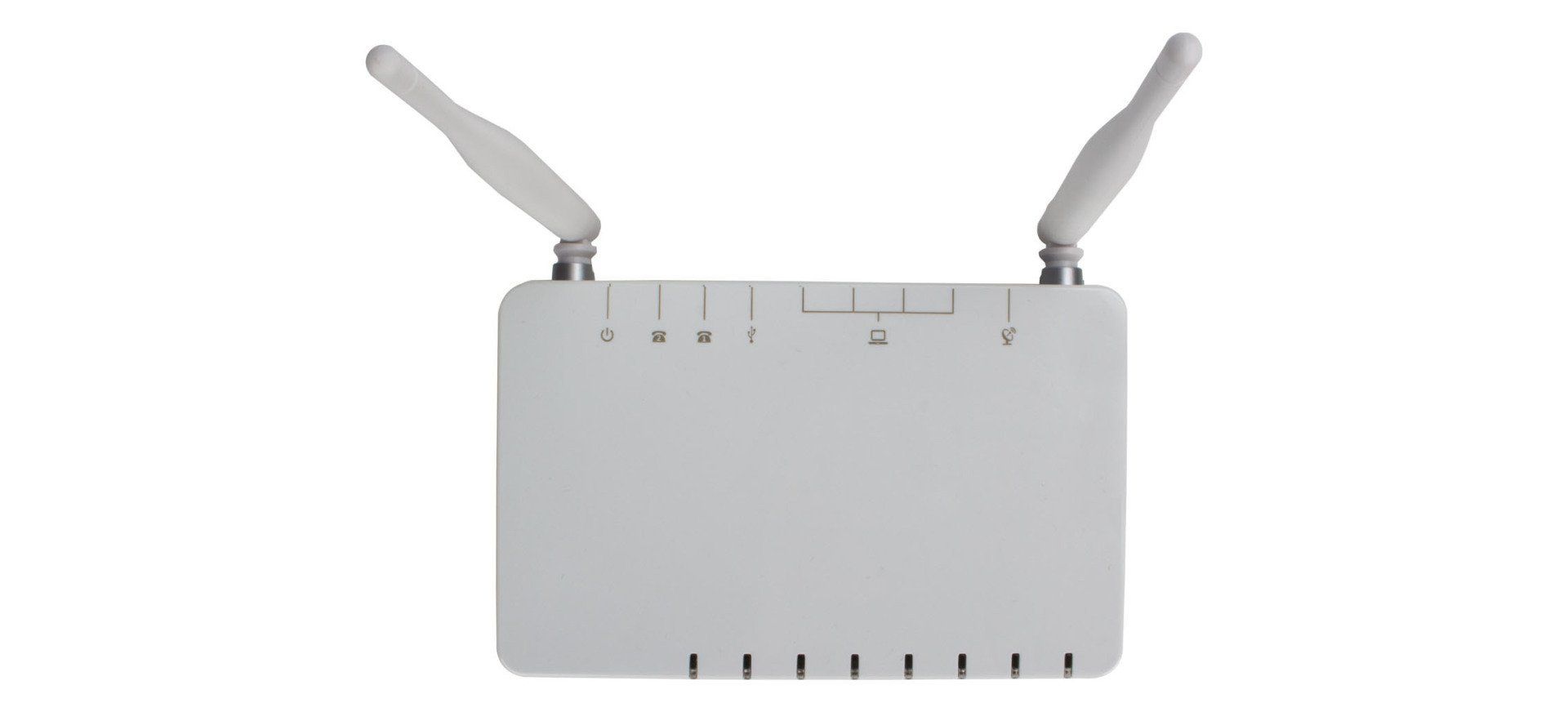

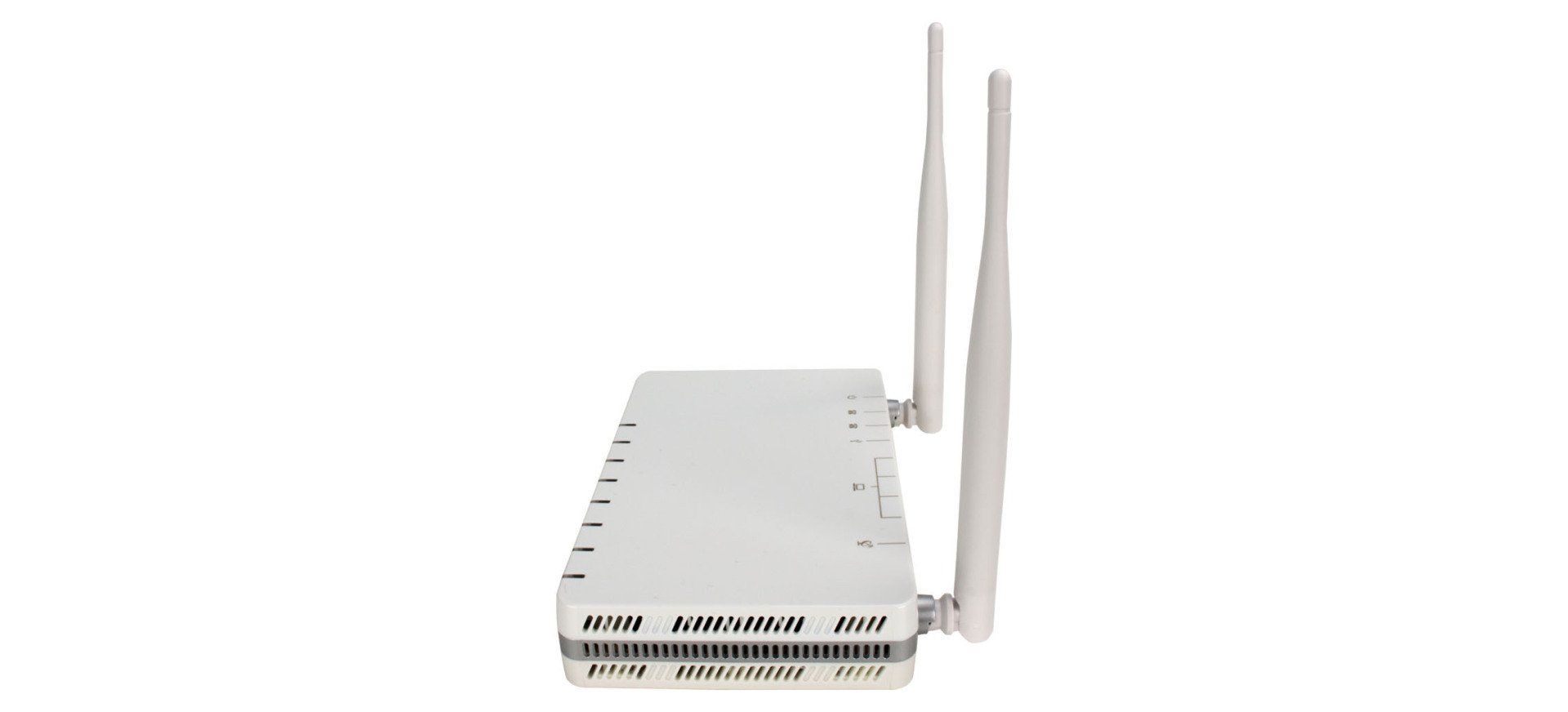

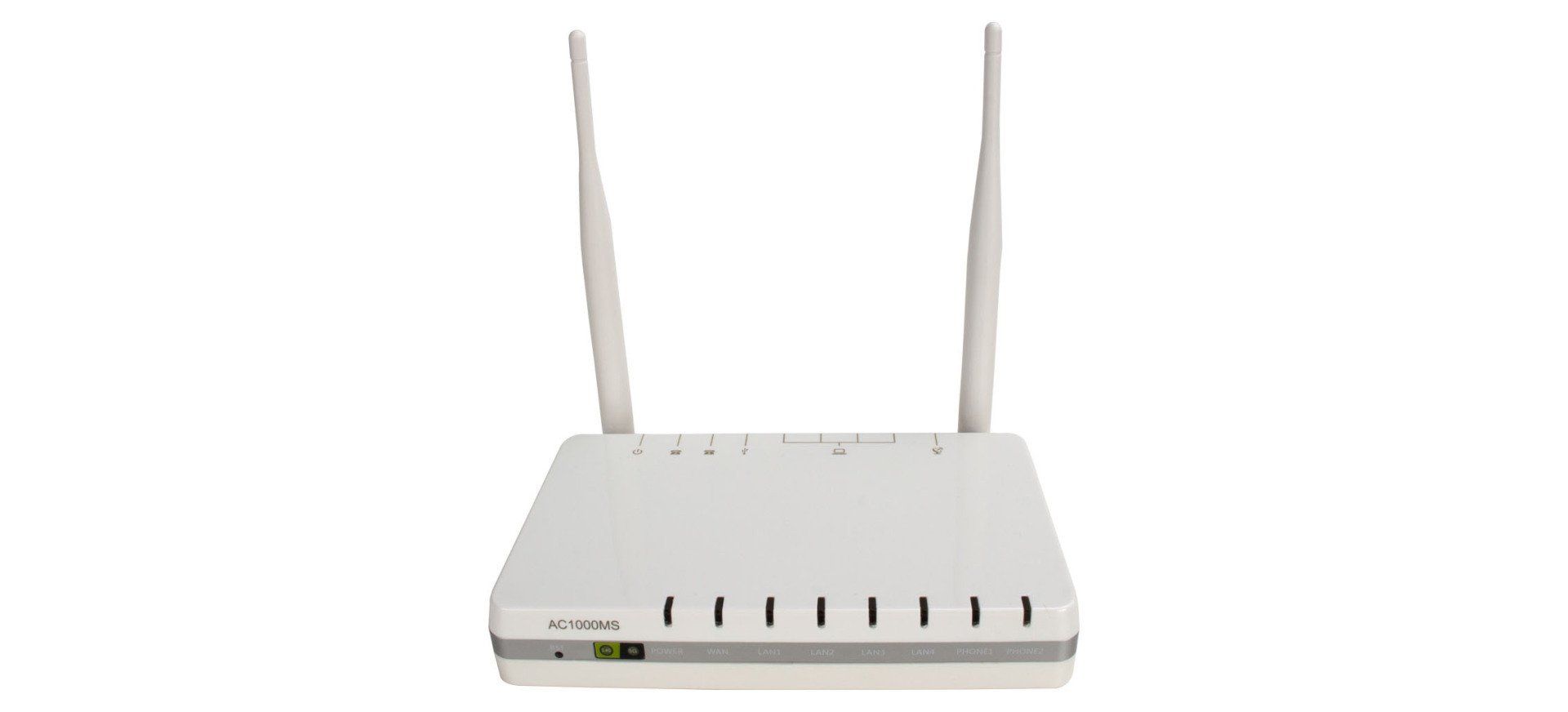

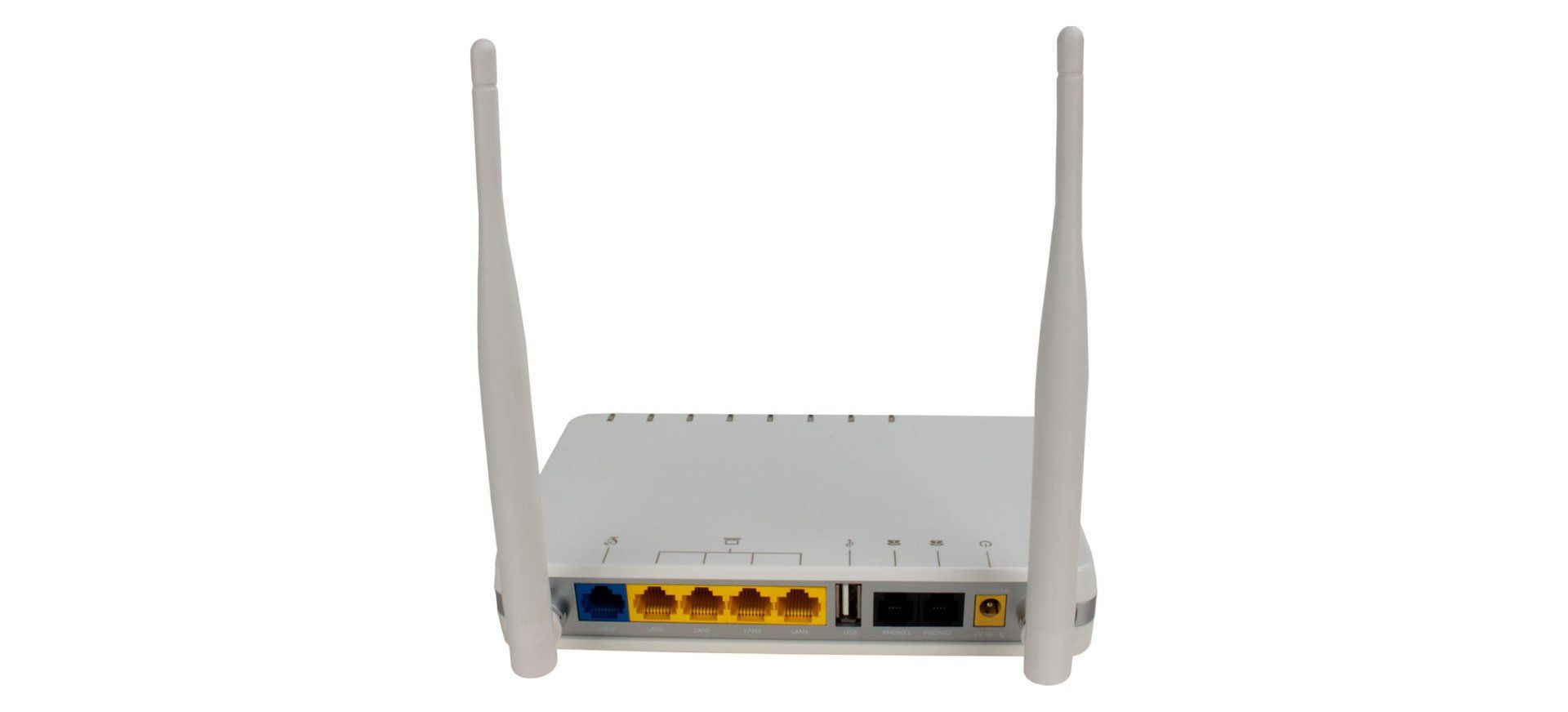

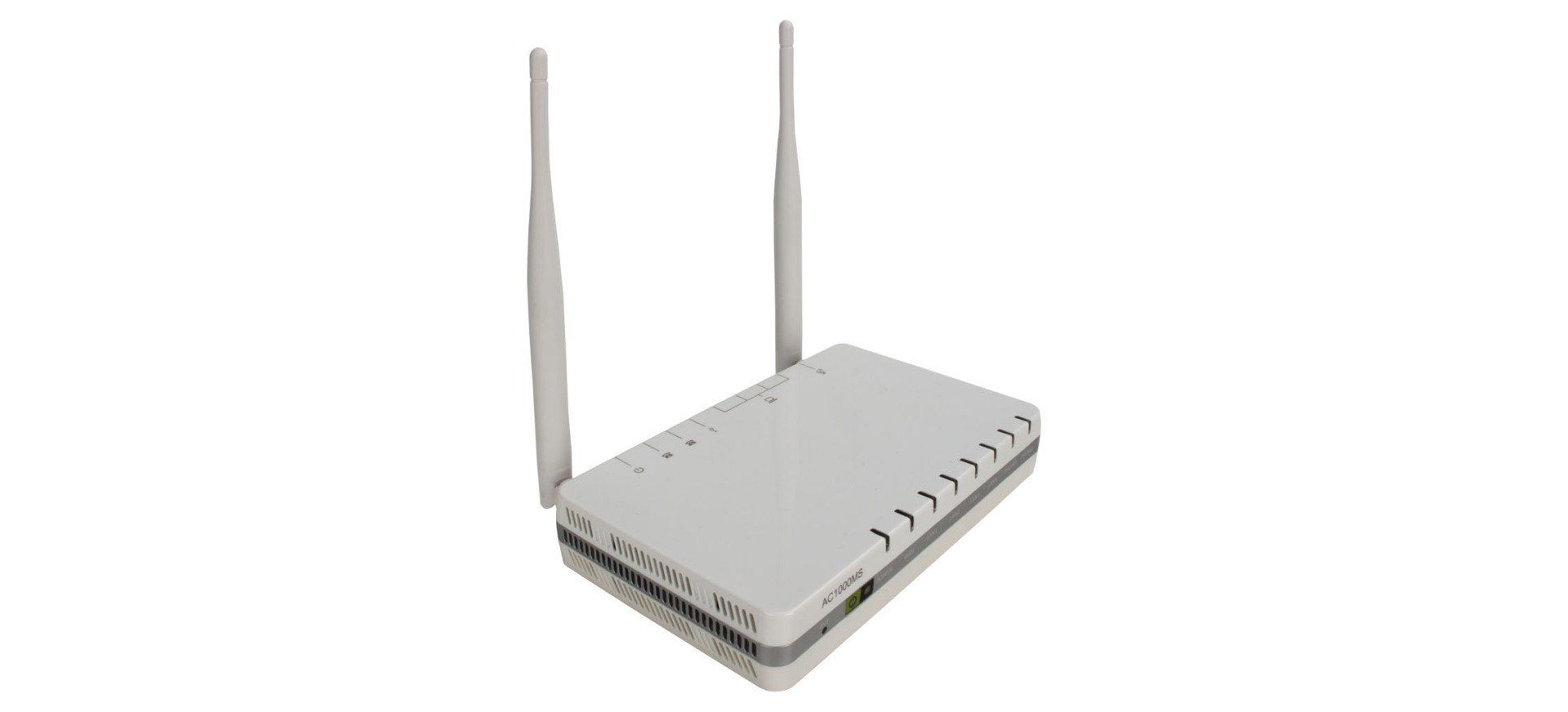

AC1000MS Wireless AC VoIP Router
AC1000MS Wireless AC VoIP Router
Secure (HTTPS) Remote Management and Provisioning | Dual Band 11ac Wi-Fi
Two FXS ports for VoIP (SIP) and T.38 Fax | 580MHz CPU for high-speed, high-bandwidth applications
Secure (HTTPS) Remote Management and Provisioning | Dual Band 11ac Wi-Fi
Two FXS ports for VoIP (SIP) and T.38 Fax | 580MHz CPU for high-speed, high-bandwidth applications
The ReadyNet AC1000MS VoIP Wireless Router combines Ethernet, wireless, and VoIP into a single, feature rich, cost effective solution. It is ideal for home users, home offices, and small offices. The ReadyNet AC1000MS not only provides high quality voice communications and wired Internet sharing capabilities, but also offers IEEE 802.11ac wireless transmission speeds of up to 1200Mbps.
With advanced router features including Quality of Service (QoS), the ReadyNet AC1000MS is able to make calls using SIP proxy voice communications. It uses the SIP V2 and 802.11 AC standards and is compatible with most service providers. It features 2 FXS telephone ports, 5 fast Ethernet ports and 1 Wireless AC access point.
Features
Features
- 1 WAN and 4 LAN 100BASE-T RJ-45 Ethernet ports (IEEE 802.3)
- Hardware NAT (HNAT) engine with 100Mbps NAT/NAPT speed
- 2.4GHz and 5.0GHz work simultaneously
- 802.11ac - up to 1200Mbps wireless
- 2x2 2.4GHz 802.11 b/g/n (300Mbps)
- 2x2 5.0GHz 802.11 ac (867Mbps)
- 5dBi external antennas
- Two FXS ports for VoIP (SIP) and T.38 Fax
- 3-way conference, call hold/forwarding/transfer/waiting
- 1 USB port for storage and printer
- Option 66, TFTP, HTTP, HTTPS and TR-069 for provisioning
- 1 Year Limited Product Warranty
Specifications
Specifications
- Physical Interfaces
- 2 RJ-11 ports for VoIP (SIP) and T.38 Fax
- 1 RJ-45 port for WAN (Ethernet 100 Base-T)
- 4 RJ-45 ports for LAN (Ethernet 100 Base-T)
- 1 Wireless 802.11ac up to 1200Mbps
- 2 5dBi antenna for IEEE802.11ac 2T2R wireless
- 1 USB 2.0 host port
- Management
- Wireless station signal strength (RSSI) via web interface and TR-069
- Upload and Download speed test via TR-069
- 5GHz and 2.4 GHz spectrum scan via web interface and TR-069
- Remote Provisioning and Firmware Upgrade
- Auto provisioning with TFTP, HTTP/HTTPS
- TR-069, TR-104, TR-157, TR-143
- Multi-level Web management interface
- IVR-driven management interface
- Local and remote Syslog (RFC 3164)
- SNTP time synchronization
- Telnet
- SNMPv2
