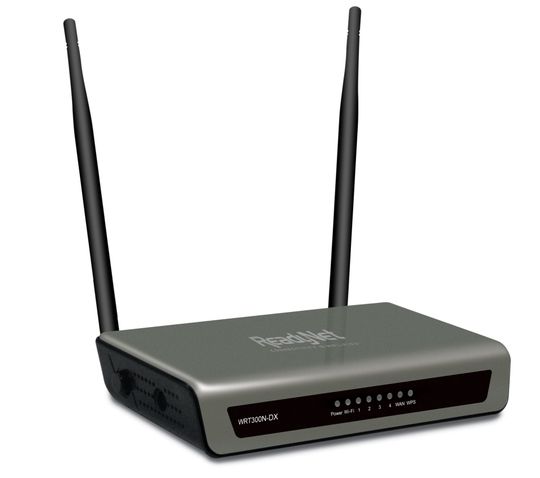

WRT300N-DX Support and Downloads
User Guides and Manuals
Firmware Installation Instructions
To install firmware:
(1) Press the “Firmware Update” link to download to your PC the latest available firmware for your router.
(2) Disconnect your PC from the internet.
(3) Connect your PC to the LAN port of the router and log into the web interface.
(4) Navigate to Management -> ‘Firmware Upgrade’ and click ‘Browse’ in the ‘Select file’ field.
(5) Navigate to the firmware file you downloaded in step 1 above and select it.
(6) Click the ‘Upgrade’ button.
(7) After the file is uploaded, the router will display a confirmation message.
(8) Wait for the router to apply the firmware update.
(9) Once the firmware file has uploaded, the router will reboot and be running the new firmware.
Do not remove power to the router while it is being flashed with new firmware or it may lock up the router and you will not be able to recover. If using your laptop, make sure there is sufficient battery or it is plugged into a power source.
